The die-cast aluminum housing for special conditions in protection class IP68!

efabox – the high-quality die-cast aluminum housing with IP68/IP69K* protection for the highest demands, even under the most extreme conditions.
efabox – the professional solution for the use of universal enclosures in harsh environments.
E-Mail: info@efa-berlin.com - Technische Informationen DE Öffnen | Technical information EN Open

efabox - the robust, customizable industrial housing.

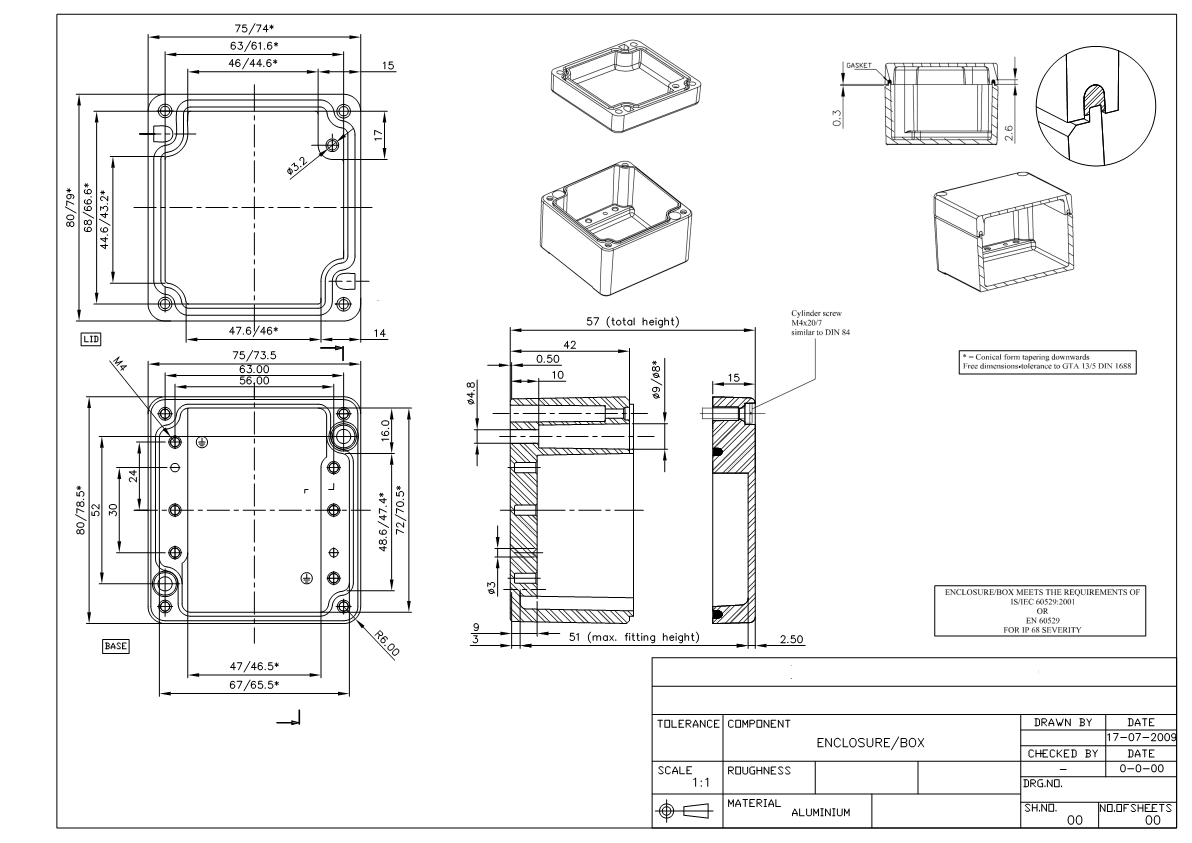

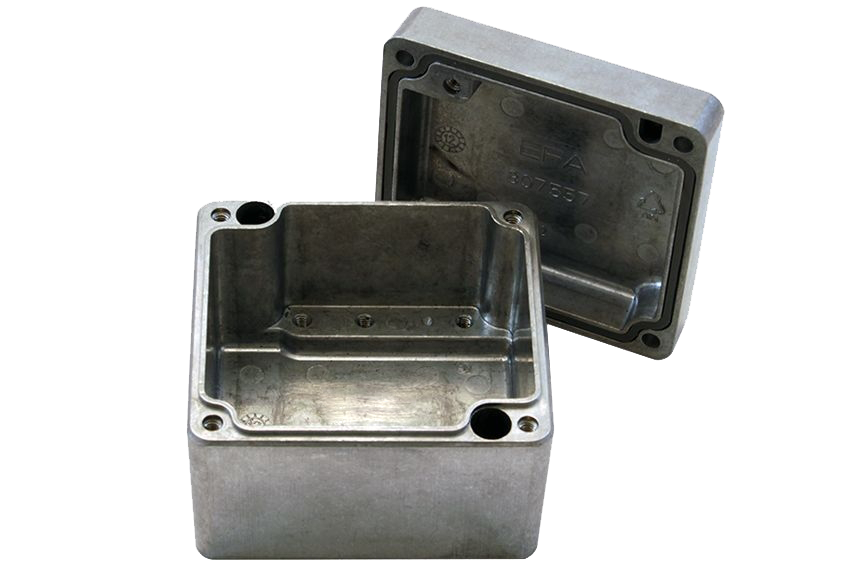

Technische Zeichnung der efabox dem Aluminiumdruckgussgehäuse in der Abmessung 75x80x57mm IP68 Silikondichtung unbeschichtet efabox das Aluminiumdruckgussgehäuse in der Abmessung 75x80x57mm IP68 Silikondichtung unbeschichtet

efabox - for use in demanding environments.

Protection class IP68 / IP69K

The compression-molded, closed seal made of silicone or neoprene guarantees full IP68/IP69K* protection, even after an impact with an impact energy of up to 7 joules.

The seal can be replaced quickly and easily if necessary.

Use in outdoor areas

The high-quality die-cast aluminum alloy ensures high stability and a long service life. The high-quality powder coating ensures extreme corrosion resistance (> 1000h in the salt spray test).

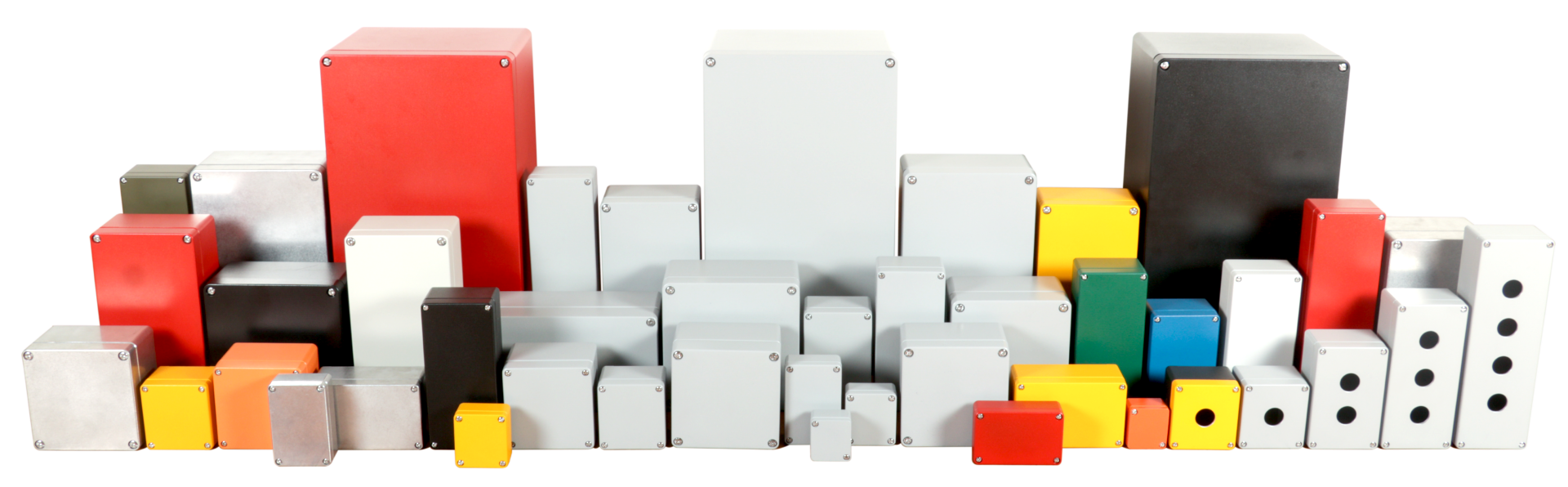

Variety of sizes

Choose from many different standard sizes from our continuously growing range. Special sizes are also available on request according to your specifications.

Color spectrum

As standard, all enclosures are available in red (RAL3001), black (RAL9005), silver-grey (RAL7001) or uncoated. On request, the efabox is also available in the color of your choice.

*partially certified, for all others on request

Customer specifications

On request, we can supply the efabox prefabricated with drill holes, assembly and packaging according to your specifications.

Certifications

CE, RoHS, REACH, IP66, IP68, IP69K*

The special housing properties of the efabox

the efabox

  • High-quality die-cast aluminum alloy for high stability and long service life
  • Compression-molded, closed silicone or neoprene seal for high protection class IP68
  • High-quality powder coating for extreme corrosion resistance

the Enclosure

  • Material EN AC-AlSi12(Fe) – DIN EN 1706 GD-AlSi12 – DIN 1725
  • Properties high-strength corrosion-resistant long service life
  • Impact resistance 7 joules, in accordance with EN 60079, without impairing the degree of protection
  • High-quality workmanship
  • For indoor & outdoor use
An image of the efabox screws.

The efabox screws.

A Picture from a red efabox with a open lid

The efabox

A Picture of an efabox gasged.

The efabox gasged

the Gasket

  • Silikon -60°C to 200°C
  • Neopren -40°C to 130°C
  • compression molded
  • closed
  • interchangeable

the screw fitting

  • Stainless steel screws
  • captive
  • interchangeable

the powder coating

  • Material Epoxy-Polyester (Hybrid)
  • Colors all colors possible
  • Smooth / matt / textured surface
  • Layer thickness 60 - 90 µm outside 40 - 70 µm inside
  • Salt spray test > 1000 h
    • Pure epoxy or polyester powder coating also possible.

Standardgehäuse und Zubehör

SizeEnclosureAccessories
RAL 3001
Red		RAL7001
Gray		RAL9005
Black		BlankMountingplateDIN Rail
45x50x30128-000-362128-000-346128-000-358128-000-366N/AN/A
58x64x34128-000-361128-000-353128-000-357128-000-365128-000-410N/A
64x98x34128-000-523128-000-524128-000-525128-000-526128-000-527128-000-528
64x150x34128-001-050128-001-049128-001-048128-001-047N/AN/A
75x80x57128-000-360128-000-354128-000-356128-000-364128-000-411128-000-416
80x125x57128-000-359128-000-343128-000-355128-000-363128-000-412128-000-417
80x175x57128-000-400128-000-398128-000-401128-000-399128-000-413128-000-418
80x200x60128-001-054128-001-053128-001-052128-001-051N/AN/A
80x250x57128-000-461128-000-446128-000-462128-000-463128-000-414128-000-419
100x100x81128-000-467128-000-466128-000-465128-000-464128-000-476128-000-477
100x160x81128-001-025128-001-024128-001-023128-001-022N/AN/A
100x200x81128-001-029128-001-028128-001-027128-001-026N/AN/A
120x122x81128-000-471128-000-470128-000-469128-000-468128-000-478128-000-560
120x122x91128-000-475128-000-474128-000-473128-000-472128-000-478128-000-560
120x220x81128-000-661128-000-659128-000-660128-000-658128-000-704128-000-701
120x220x91128-000-665128-000-663128-000-664128-000-662128-000-704128-000-701
122x360x80128-000-686128-000-687128-000-688128-000-689N/AN/A
140x140x91128-000-458128-000-447128-000-459128-000-460128-000-450128-000-561
140x200x91128-001-089128-001-090128-001-091128-001-092128-001-093N/A
160x160x91128-000-842128-000-843128-000-844128-000-845128-000-881128-000-680
160x260x91128-000-669128-000-667128-000-668128-000-666128-000-705128-000-703
160x260x160128-001-058128-001-057128-001-056128-001-055N/AN/A
160x360x90128-001-071128-001-072128-001-073128-001-074128-001-075128-001-076
180x180x101128-000-874128-000-875128-000-876128-000-877128-000-882128-000-681
230x280x111128-001-084128-001-085128-001-086128-001-087128-001-088N/A
230x330x110128-000-690128-000-691128-000-692128-000-693N/AN/A
230x400x180N/A128-000-821128-000-822128-000-823N/AN/A

Your own housing size on request. Your own color, your company logo,
protection types, etc.

  • Drill holes
  • Threads
  • Assemblies
  • Assembly
  • Cable glands
  • Pressure equalization elements
  • Control and signaling devices
  • Terminal strips
  • Relays
  • Printed circuit boards
  • Complete
  • What can we make for you?

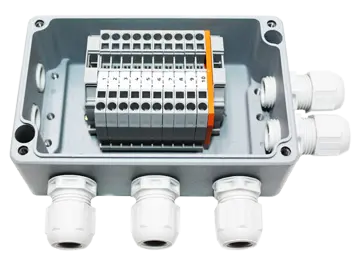

The efabox with holes, cable bushings, and terminal strips.

The ready-made efabox with holes, blind plugs, cable bushings, and terminal strips.

efabox Flyer for to download

efabox Flyer German efabox Flyer English efabox Flyer French

Aluminum- and Zinc die castings

Aluminium- and Zinc die castings Parts

We manufacture die-cast parts to order for you.
